Dumpster GOURDON ATP 13
ATP 13 trailer / Paylaod : 13000 kg / Volume : 9 m3 | Coupling : Height-adjustable hydraulic stand | Running gear : Generously dimensioned bogie axles / Leaf spring suspension / 25 km / h approval | Bodywork / Lighting : Lowered body built into the frame with support on silent block / Resistant PRS steel frame / Half-round conical body all HARDOX® 450 / HARDOX® 450 base 5 mm thick / HARDOX® 450 sides 4 mm thick / Upper edge of Rock breaker body / Sliding side ladder with internal step / Electric harness protected in the frame / Double LED lights protected by grid / Dump : Dump by telescopic cylinder on tractor oil socket
| Mise à la route GOURDON: Frais de mise à la route |

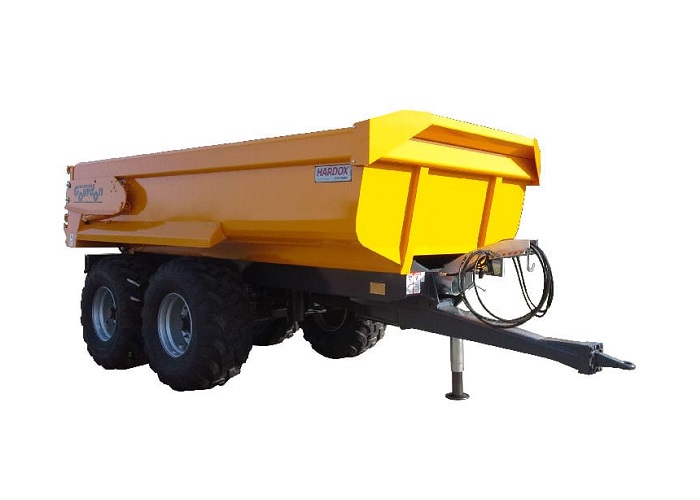

Gourdon Tipper ATP 13 Trailer
The TP Dump to optimize your sites.
Characteristics
Weight
- Payload : 13000 kg
Loading
- Volume : 9 m3
Useful dimensions
- L : 4700 mm
- l : 2300 mm
- h : 800 mm
- Lht : 6250 mm
- lht : 2550 mm
- H : 1400 mm
Boggie axles
- 2
Wheels
- 385/65R22,5 (standards)
Standard equipment
Coupling
- Height adjustable hydraulic stand
Rolling train
- Generously dimensioned Boggie axles
- Poclain hydraulic assistance on axles (Option : contact us)
- Leaf spring suspension
- 25 km/h approval
Bodywork / Lighting
- Lowered body built into the frame with supports on silent block
- Heavy duty PRS steel frame
- Half-round conical body all HARDOX® 450
- HARDOX® 450 base 5 mm thick
- HARDOX® 450 sides 4 mm thick
- Upper body edge rock breaker
- Sliding side ladder with internal step
- Electric harness protected in the chassis
- Double LED lights protected by grid
Dumping
- Dumping by telescopic cylinder on tractor oil socket
